Array IR Cameras from China manufacturer - WEISKY Technology Co., Limited

Price:	1.0~23.99 USD
Payment Terms:	T/T,D/P,WU;Paypal
Special Groups:	Promotion (21)
Place of Origin:	, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: SC-D18AS

Production Capacity: 5000pcs/month

Brand Name: WEISKY

Night Vison: Yes

Housing Material: Plastic

Certification: CE,FCC,RoHS

Means of Transport: Ocean,Land,Air

Delivery Date: 3-7 business days after rec...

Sensor: CCD

Housing Color: Pure White

Camera Mounting: Wall/Ceiling

Warranty: 2 Years

1.1/3 SONY Super CCD 450TVL
2.2Pcs IR LEd
3.IR distance 20-30M
4.6mm Lens

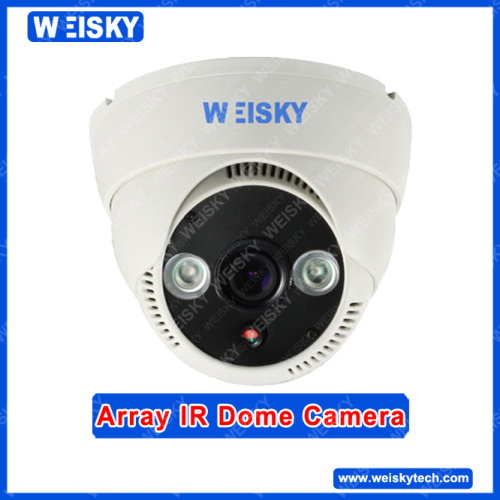

WEISKY Plastic SONY CCD 450TVL Array IR Dome Camera SC-D18AS

1.1/3 Sony Super CCD 450TVL
2.2Pcs Array IR LEDS
3.IR distance 20-30M

Product Feature:

Suitable for surveillance of banks, residences, building, streets, building sites, roads and multiple shops. The camera is known for their easy installation and features as it entered into market,.

Cameras supply high quality image from SONY CCD and DSP, IR night view to fulfill customers' different requirements. Integration of high degree, easier operating super client software. All conveniences are for the customer only!

Backed with 2-year warranty. The series features a wide range of camera styles addressing virtually any type installation

and can be used by novices or professionals.

SPECIFICATIONS:

Model	SC-D18AS
Signal System	PAL/NTSC
SC-D18AS	1/3" Sony Super Had, 450TVL
Horizontal Resolution	450/600TVL
Pixels (H×V)	PAL: 752(H) X 582(V)
Pixels (H×V)	NTSC:769(H)X 494(V)
Lens	Mega 6mm Fixed Lens
View Angle	51º
Electronic Shutter	1/50-1/100,000sec
Housing Diameter	95mm
Array IR Led	2unit, 3^rd Generation Array Led, 20-30M
Min. Illumination (Night)	Color(Day) 0.1 Lux ; B/W(Night) 0 Lux, f2.0
Gamma Characteristic	0.45
S/N Ratio	More than 52dB
AES	1/50-1/100,000sec
AWB	AUTO
AGC	AUTO
BLC	AUTO
S/N Ratio	AUTO
ENVIRONMENTAL
Operation Temperature	-10ºC to 50 ºC
Storage Temperature	-20ºC to 60 ºC
Operating Humidity	Up to 95%
Ingress Protection Rating
Weatherproof	YES
Vandal Proof	-
ACCESSORIES
Bracket
Power Adapter	Yes
Sun Shield
VIDEO SIGNAL
Signal Connector	BNC Connector
Video Out	Composite signal 1.0Vp-p/75ohm
Input Voltage	DC12V Volt
Current Draw	1000 mA
Power Consumption	12Watts
REGULATORY
Regulatory Type	CE, FCC, ROHS
WARRANTY
Date of purchase	2Years
PHYSICAL NATURE
Housing Material	Plastic
Housing Color	Pure White
Camera Mounting	Wall/Ceiling
Dimensions (W x H x D)	10010094mm
Weight	200g, Subject to the overall package
