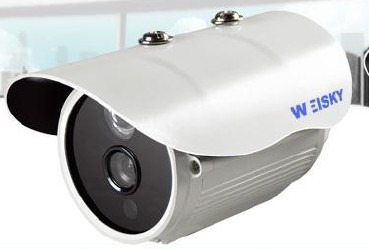

139 CMOS Array IR Dome Cameas with IR-cut SC-F3 manufacturer from China WEISKY Technology Co., Limited

139 CMOS Array IR Dome Cameas with IR-cut

Price:	1.0~19.99 USD
Payment Terms:	T/T,WU;Paypal
Special Groups:	New Products (7) Promotion (21)
Place of Origin:	Guangdong, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: SC-F3

Production Capacity: 5000pcs/month

Brand Name: WEISKY

Horizontal Resolution: 520TVL

Low Illumination: 0.01Lux

IR LED: YEs

Waterproof Rating: IP66

Means of Transport: Ocean,Land,Air

Delivery Date: 3-10 business days after re...

Product Name: Array IR Dome Camera

Sensor: 139 CMOS(Aptina America)

IR Cut: Yes

Pan/Tilt: Yes

1/4 high-resolution CMOS Sensor(Aptina America);
520TVL,Effective Pixel:640(H)*480(V);
1pc Array IR LED,25M IR distance;
Waterproof Rating:IP 66

139 CMOS Array IR Dome Cameas with IR-cut

1/4 " High-resolution CMOS Sensor(Aptina America)

520TVL,Effective Pixel:640(H)*480(V)

Waterproof Level:IP66

Working Temperature:-40℃to+60℃

Power Supply:DC12V±10%

Power Consumption:1W(Infrared Off)/2.5W(Infrared On)

Product Features:

lSuitable for surveillance of banks, residences, building, streets, building sites, roads and multiple shops. The camera is known for their easy installation and features as it entered into market.

lCameras supply high quality image from SONY CCD and DSP, IR night view to fulfill customers' different requirements. Integration of high degree, easier operating super client software. All conveniences are for the customer only!

lBacked with 2-year warranty. The series features a wide range of camera styles addressing virtually any type installation and can be used by novices or professionals.

SPECIFICATIONS:

Model	SC-F3
Image Sensor	1/4"high-resolution CMOS Sensor(Aptina America)
Horizontal Resolution	520TVL
Pixels	Effective Pixel:640(H)*480(V)
IR-Cut	Yes
Lens	6mm Fixed Lens (6/8/12/16mm for Selection)
TV System	PAL/NTSC
Electronic Shutter Time	Auto PAL 1/50-1/100,000sec;NTSC 1/60-1/100.000Sec
Min. Illumination	Color(Day) 0.01 Lux, B/W(Night) 0 Lux
IR Led	Array IR 1pcs,25m IR Distance
Gamma Correction	0.45
S/N Ratio	More than 54dB
AES	1/50-1/100,000sec
AWB	AUTO
AGC	AUTO
BLC	AUTO
S/N Ratio	AUTO
ENVIRONMENTAL
Operation Temperature	-10ºC to +50 ºC RH95% Max
Storage Temperature	-20ºC to +60 ºC RH95% Max
Operating Humidity	Up to 95%
Waterproof Rating	IP66
Weatherproof	Yes
Vandal Proof	-
ACCESSORIES
Bracket	-
Power Adapter	-
Sun Shield	Yes
VIDEO SIGNAL
Signal Connector	BNC Connector
Video Out	Composite Signal (1.0Vp-p, 75Ω)
Input Voltage	DC12V Volt
Current Draw	500 mA
Power Consumption	6Watts
REGULATORY
Regulatory Type	CE, FCC, ROHS,ISO9001:2008
WARRANTY
Date of purchase	2Years
PHYSICAL NATURE
Housing Material	Metal Aluminum
Housing Color	Shining white
Camera Mounting	Wall
Dimensions (W x H x D)	15810072mm
Weight	400g
